Docks & Boat Lifts

Two-Level Dock & Floating Dock

A redacted waterfront plan set for replacement of existing docks with a new two-level fixed dock, floating dock and gangway, including framing coordinated around existing cypress trees.

Selected Plan Sheets

A dock layout shaped around existing site conditions.

This example shows how a waterfront structure can be developed around existing vegetation and shoreline constraints while coordinating fixed dock levels, a gangway, floating dock and related marine construction.

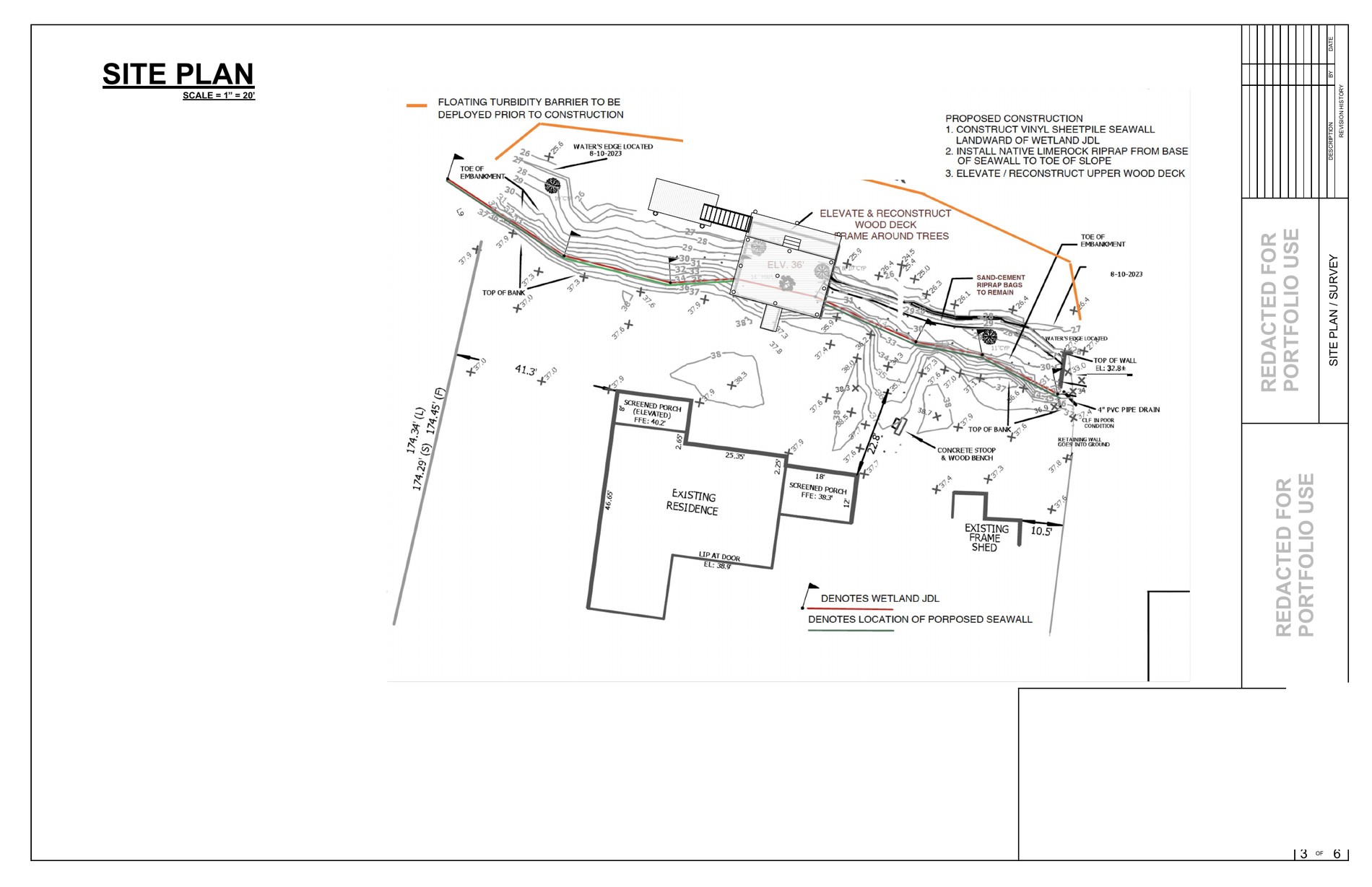

Redacted waterfront site plan for dock reconstruction — Site plan coordinating the dock reconstruction with shoreline conditions, existing structures, environmental limits and preserved trees.

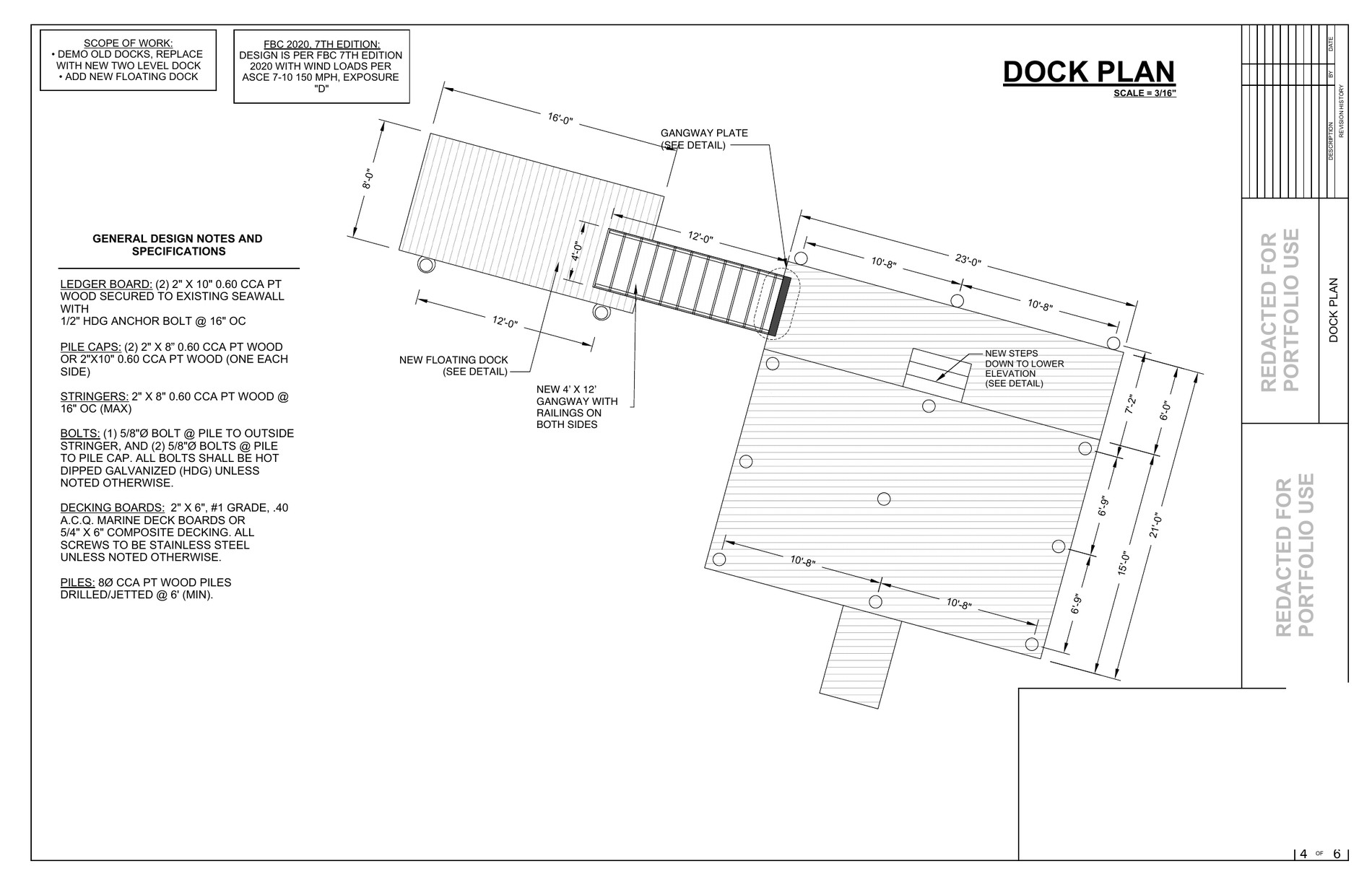

Two-level fixed dock, floating dock and gangway plan — Dock plan showing the new two-level fixed dock, steps to the lower level, a 4-foot by 12-foot gangway and new floating dock.

Dock framing plan around existing cypress trees — Framing plan and elevation showing pile caps, stringers and custom framing around existing cypress trees.

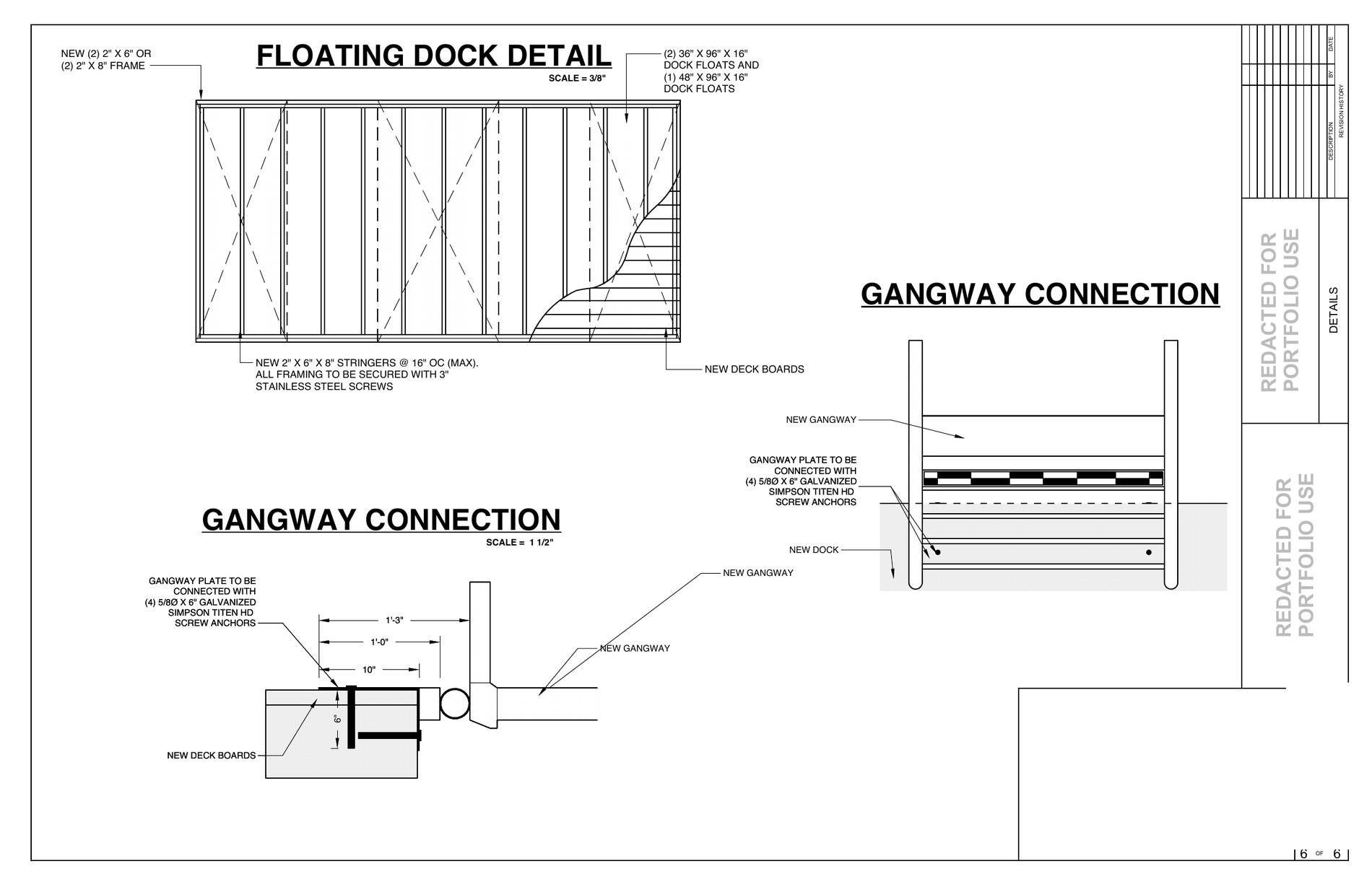

Floating dock and gangway connection details — Floating-dock framing and gangway connection details, including anchorage and deck framing.

Portfolio example only. Client and parcel information was already redacted; the website copy was further sanitized to remove internal project identifiers and remaining location clues.
