Second-Level Deck & Dock Construction

A redacted waterfront plan set combining a new elevated deck with a new dock, structural framing, foundations, handrails, marine pile framing and a coordinated elevation.

Selected Plan Sheets

Deck and dock construction in one coordinated set.

This project demonstrates plan production for an elevated deck and waterfront dock, including foundation connections, framing, ledger/handrail details, marine pile layout and overall elevation coordination.

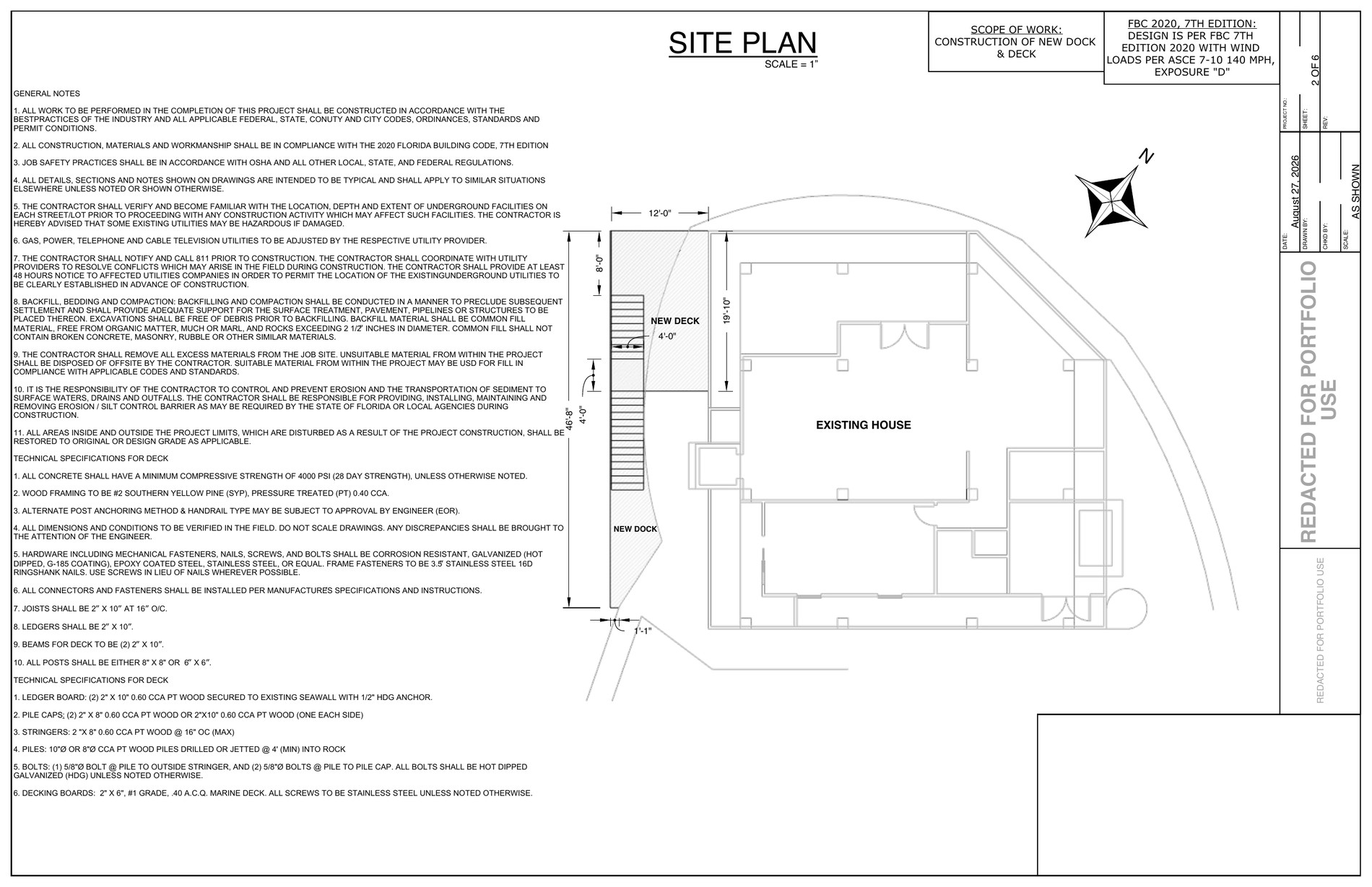

Redacted site plan for second-level deck and dock construction — Site plan showing the relationship between the existing structure, new deck and new dock.

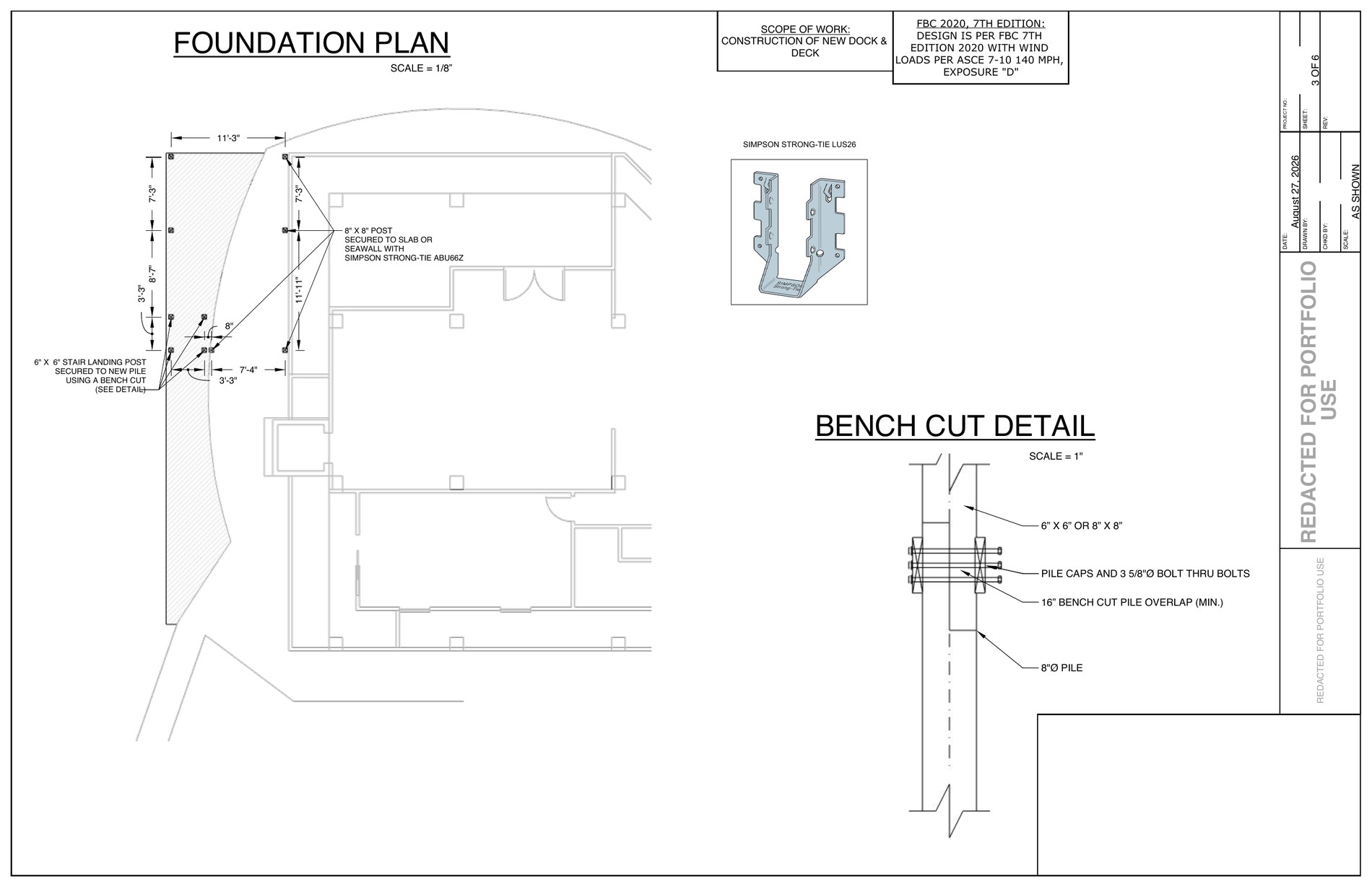

Foundation plan and bench cut pile detail — Foundation plan with post locations, stair-landing support and a bench-cut pile connection detail.

Second-level deck framing, handrail and ledger details — Deck framing plan with joists, beams, ledger attachment, stair landings and detailed handrail construction.

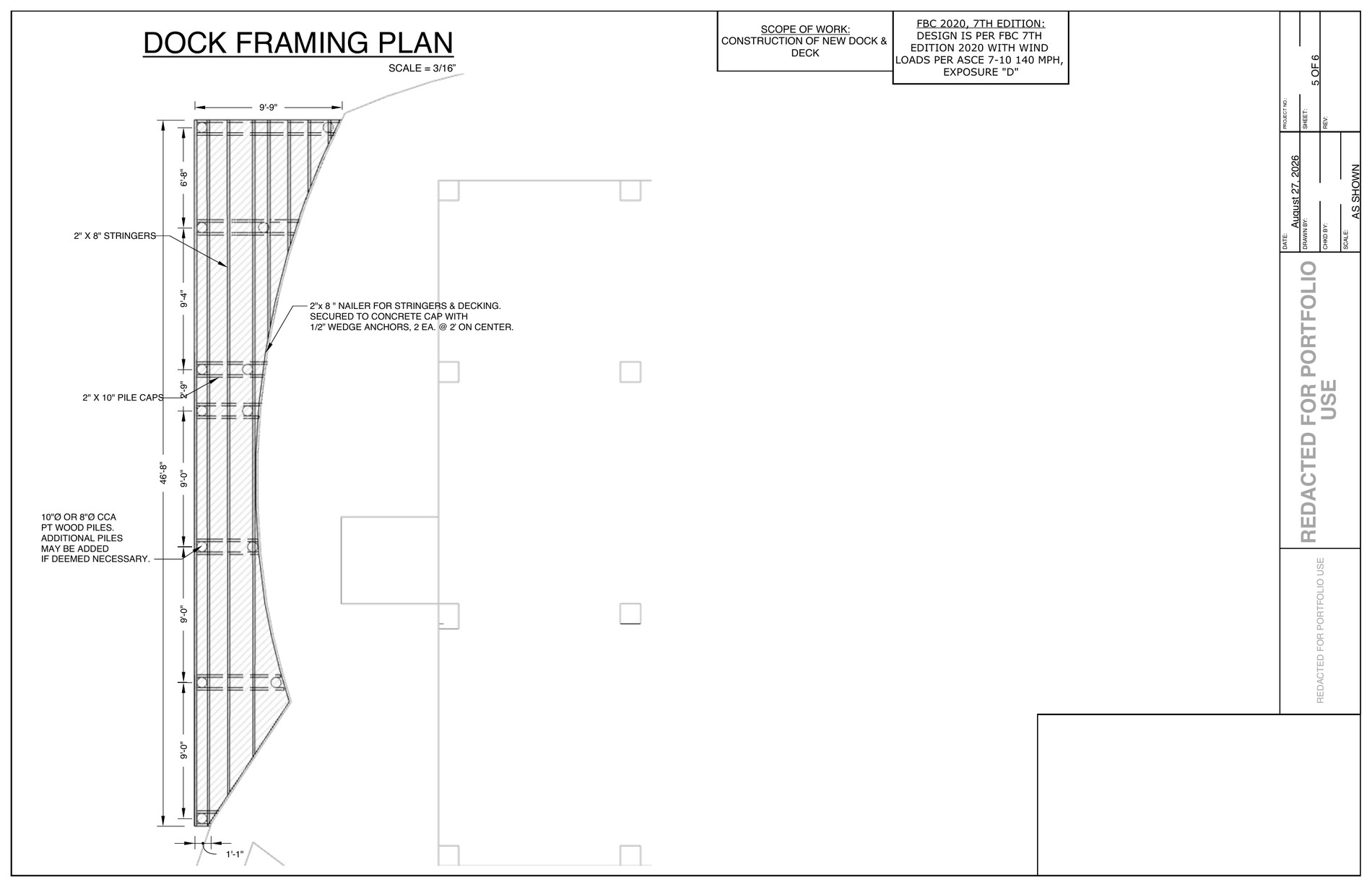

Dock framing plan with piles, pile caps and stringers — Dock framing plan showing marine piles, pile caps, stringers and concrete-cap anchorage.

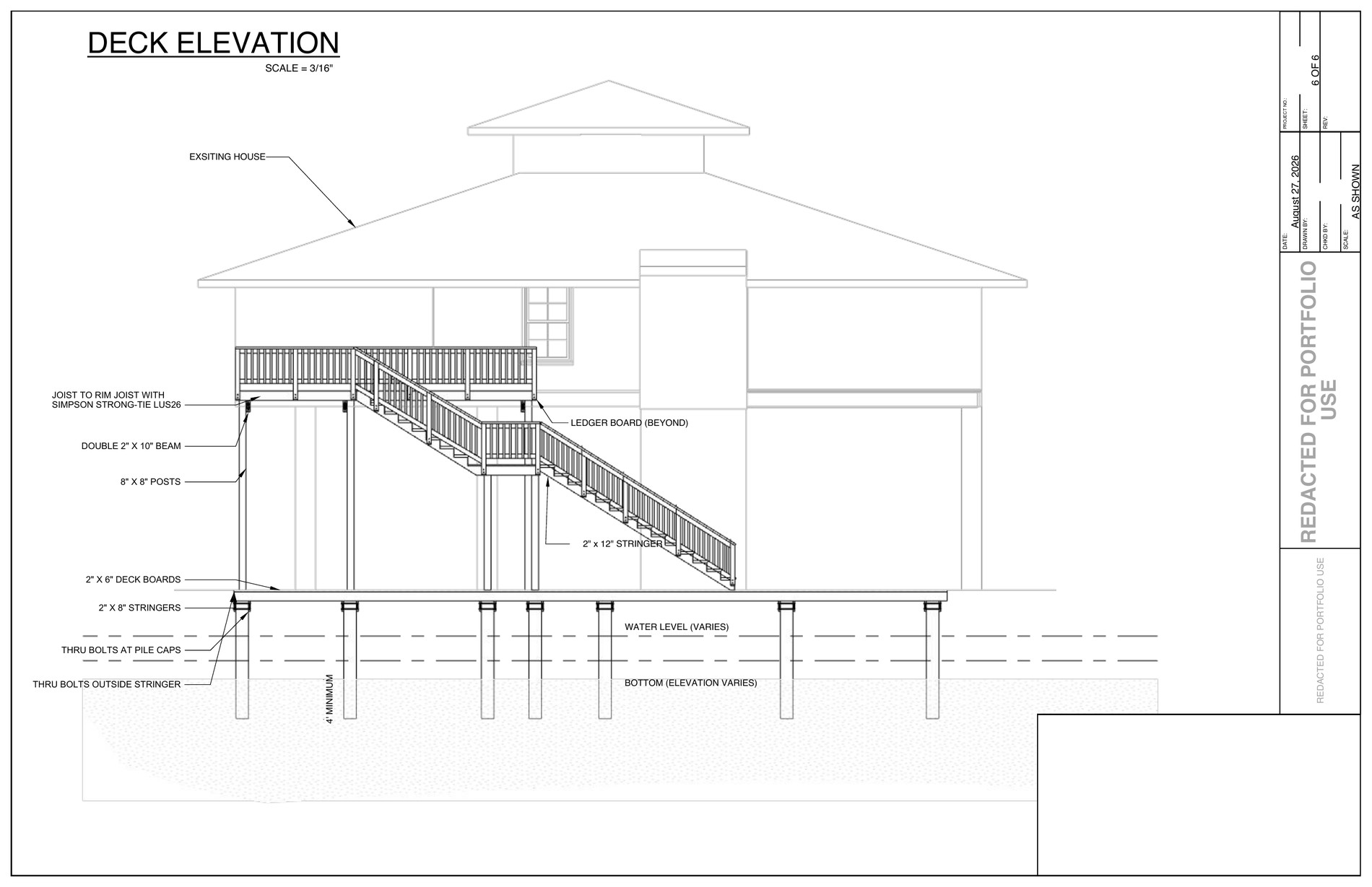

Deck and dock construction elevation — Overall elevation showing the raised deck, stairs, dock structure, marine piles and varying water/bottom elevations.

Portfolio example only. Identifying client, parcel and project-location information has been removed. The website copy has also been sanitized to remove internal project-number and drafter/checker identifiers.
